Product Details:
|
| Features: | Good Reflectivity, Wearproof | Material: | Synthetic Rubber |
|---|---|---|---|
| Product Name: | Pavement Marking Tape, Pre-Formed Floor Markings | Thickness: | 0.13mm, 0.16mm, 0.18mm |
| Width: | 5cm,10cm,15cm, 20cm | Length: | 40M |
| High Light: | Permanent Pavement Marking Tape,Reflective Pavement Marking Tape,Pre Formed road marking tape |
||

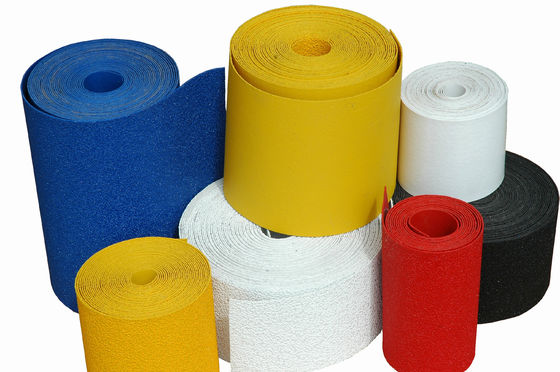

Pavement Marking Tapes - Pre-formed reflective marking tape
Description
KT6001/KT6011 consists of a highly reflective layer of select glass spheres bonded to the specially formulated blend of polymer resins, pigments, and fillers, evenly dispersed with glass spheres and an integrated reinforcing system.
The bottom side of KT6001/KT6011 is coated with a unique pressure sensitive adhesive designed to adhere to properly prepared bituminous and Portland cement surfaces without the use of heat, solvents, or other extra measures.
Technical Parameters
| Nature | General data | Unit | Test Methods | |
| KT6011 | KT6012 | -------- | -------- | |
| Color | white | yellow | -------- | -------- |
| Thickness | 1.8 | 1.8 | mm | GB/T 7125 |
| Water resistance | pass | pass | -------- | GB/ T24717 |
| Acid resistance | pass | pass | -------- | GB/ T24717 |
| Wear-resistant | 40 | 40 | mg | GB/ T24717 |
| Retroreflection | >500 | >300 | mcd/m 2 /lux | GB/ T24717 |
| Minimum adhesion | 45 | 25 | N/25mm | GB/ T24717 |
| Anti-skid value | 45 | 45 | BPN | GB/ T24717 |
Standard Product
Item No.: KT6001(without adhesive backing), KT6011X(with adhesive backing)
Color: white, yellow, red, blue, black, and other multi-color optional
| Product Code | Length(m) | Width(cm) | Thickness(mm) | Weight(±10%) | Conventional packaging |
| KT6001 | 40M |
5,10,15,20, Customizable |
1.3-1.8MM | 2.2kg/sqm | 300*300*320MM |
| KT6011 | 40M |
5,10,15,20, Customizable |
1.6-2.2MM | 2.4kg/sqm | 300*300*320MM |
Application
Widely used in various highways and graded roads.
Proper surface preparation is essential for satisfactory KT6001/KT6011 results. Essentially, the surface must be clean and dry, with a minimum surface temperature of, 50ºF and rising.
KT5015 cannot be successfully applied over loose or caked dirt, gravel, oily residues, road salt residues, or other foreign substances which will interfere with proper bonding.
Product Features
Patch Ability
KT6001/KT6011 pavement marking tape is designed for use in patching worn areas of KT6001/KT6011 installations. The tape will readily adhere to previously applied material.
Performance Life
The performance life of KT6001/KT6011 plastic marking materials will vary greatly depending upon traffic conditions, snow removal practices, pavement surfaces, and application techniques. It is recommended that each customer evaluate KT6001/KT6011 pavement Marking tape under the various conditions of specific locations. Experience has shown that when properly applied, these materials are highly effective traffic control devices. However, we makes no generalized performance claims.
