Product Details:
|
| Product Code: | P180F | Product Name: | PVC Electrical Tape, Insulation Tape |
|---|---|---|---|
| Thickness: | 0.18mm, Customized | Color: | Black, White, Green |
| Width: | 19mm, Customized | Temperature Resistance: | 80 ℃ |
| Length: | 9yds,10yds, 20yds, 25yds, Customized | Application: | Electrical, Electronics |
| Rated Voltage: | 600 V | Flame Resistance: | Non Flame - Retardant |
| High Light: | 0.18mm PVC Electrical Tape,RoHS PVC Electrical Tape,Flame Retardant grey insulation tape |
||

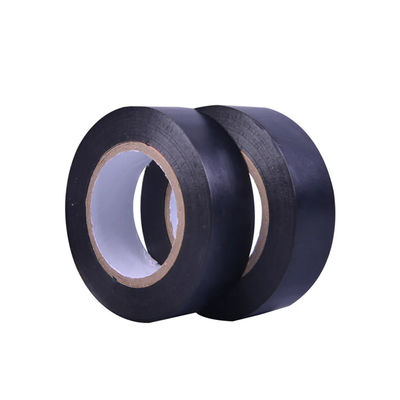

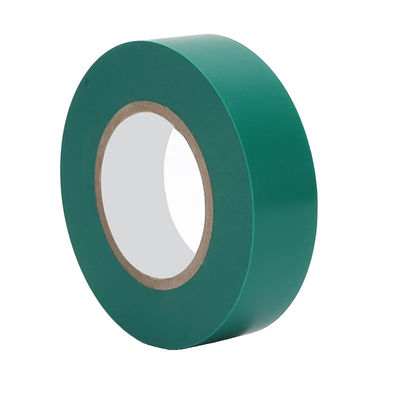

Non Flame Retardant PVC Electrical Tape - Non self-extinguishing
Descriptions:
A thin premium grade plasticized electrical Non self-extinguishing soft PVC film coated with an aggressive pressure sensitive rubber based adhesive with good characteristics. The product performance is stable and unaffected by most chemicals and moisture. It has been designed for electrical insulating application. It does not contain substances harmful to human body, such as lead and cadmium. The product is approved by CE, UL, CSA, and also meets ROHS requirement.
Technical Specification
| Property | Unit | Product code | Test method | |||||
| P110F | P120F | P130F | P150F | P165F | P180F | |||
| Total Thickness |
mm | 0.11 | 0.12 | 0.13 | 0.15 | 0.165 | 0.18 | ASTM-D-1000 |
| Tensile Strength |
N/cm | 18 | 19 | 20 | 25 | 25 | 30 | |
| Elongation at break |
% | 160 | 170 | 180 | 200 | 200 | 220 | |
| 180°Peel Adhesion to steel |
N/cm | 1.5---1.8 | ||||||
| To backing | 1.5---1.8 | |||||||
| Breakdown Strength |
KV | ≥35 | ||||||
| Temperature Resistance |
℃ | 80 | ||||||
| Flame Resistance |
s | ＜2 | ||||||
| Voltage Resistance |
V | 600 | UL510 | |||||
| Pd, Cd, | pmm | 30 | US EPA3052 | |||||
| Hg, Cr | 10 | US EPA3060A | ||||||
| PBBs | 10 | US EPA3540C | ||||||
Standard Products
| Thickness | 0.1mm - 0.18mm, can be customized |
| Length | 10, 20, 25 or 33m/yds, can be customized |
| Width | 12, 15, 19 or 25mm, can be customized |
| Paper core | Diamether 32mm or 38mm & thickness 3mm |
| Color | Black, White, Grey, Red, Blue, Yellow, Green |
| Packing | Cello wrapped with label, can be customized |
| Samples | Free,Freight on buyer |
| MOQ | 1 Ton PVC Film |
Applications:
For insulative connection and sheath protection of wire and cable under the voltage of 600V and on the environment temperature between 0°C~ 80°C, Non frame retardant.
-Primary electrical insulation
-Protection for low and medium voltage cable splices
-Color coding
-Used for electrical cabes wrapping in automotive application
-Hand application
Packaging & Shipping
| Delivery: | 30-35 days after receiving 30% deposit. |
| Packing Details: | 1. Each roll packing with a label |
| 2. 10 rolls shrink | |
| 3. 100rolls/carton, 120rolls/carton, 150rolls/carton, 200rolls/carton | |
| According to customer's requests |
