Product Details:
|
Material: | Kraft Paper | Product Name: | Writable Flatback Kraft Paper Tape |
---|---|---|---|
Thickness: | 0.13mm/0.135mm | Product Code: | KTN-1735 & KTN8735 |
Width: | 48mm, 50mm | Adhesive: | Hot Melt |
Length: | 50 -100m, Customized | Tem. Range: | -5℃ ~ +60℃ |
Application: | Packing Carton | Feature: | Environmentally Friendly, Eco Friendly |
High Light: | Eco Friendly Reinforced Kraft Tape,Printable Reinforced Kraft Tape,Flatback Printed Kraft Tape |

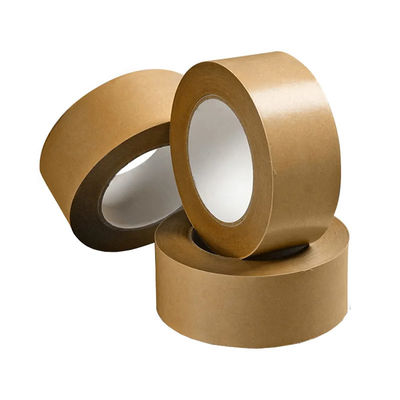

Self Adhesive Non Reinforced Flatback Kraft Paper Tape
Description
Self Adhesive Non Reinforced Flatback Kraft Paper Tape is backed with high density kraft paper and coated with hot melt adhesive.
Self-adhesive kraft paper tape is designed for variety of packaging. It is superior performance in a variety of packaging, splicing and tabbing applications. It provides a quick positive seal under a wide range of temperature and humidity conditions. Most of our flatback tapes are hand tearable. It's a quick, sure sealing, economical, self-adhesive paper tape which can increase packaging line efficiency. It is versatile and offers a positive attractive seal which matches most corrugated cardboard. It's quick stick and has excellent adhesion which discourages pilfering. It can be used on all types of cartons.
Features
Printable and Writable Flatback Kraft Paper Tape can be used for masking and general holding, bundling and splicing applications. It works best on papers, films, fabrics and yarns. This tape is easily marked and written on and works well in many graphic arts applications. It is easy to manipulate and conforms to corners, curves and irregular surfaces. The heavy thickness colored flatback paper backing tears by hand while minimizing slivering, making the tape easy to manipulate and apply.
Product Guide
Item No. | Adhesive | Backing | Color | Thickness | Peel Adhesion | Tensile Strength | Elongation at Break | Tem. Range | ||||
mm | mils | N/25mm | oz/in | N/25mm | lbs/in | ℃ | ℉ | |||||
KTN1735 | Hot Melt Adhesive | 70g/㎡ Kraft Paper | Natural | 0.13 | 5.1 | 20 | 72 | 175 | 39 | 2% - 4% | -5~+60 | 23-140 |
KTN1740 | 0.135 | 5.3 | 23 | 83 | 175 | 39 | ||||||
KTN8735 | 0.125 | 4.9 | 20 | 72 | 175 | 39 | ||||||
KTN8740 | 0.13 | 5.1 | 23 | 82.7 | 175 | 39 |
Product Technical Data Sheet
Physical Properties | Standard | Metric | Test Method | ||
Product Code | KTN1735 | ||||
Color | Natural | ||||
Adhesive | Hot Melt Adhesive | ||||
Backing | 70 g/㎡ Kraft Paper | ||||
Total Thickness | 5.1 mils | 0.13 mm | ASTM D-3652 | GB/T7125 | |
Peel Adhesion 90° | 72 oz/in | 20 N/25mm | ASTM D-3330 | GB/T2792 | |
Holding Power | >48 h | >48 h | ASTM D-3654 | GB/T4851 | |
Tensile Strength | 39 lbs/in | 175 N/25mm | ASTM D-3759 | GB/T7753 | |
Elongation at Break | 2-4% | 2-4% | ASTM D- 3759 | GB/T7753 | |
Service Tem.- Mini | 23° F | -5°C | BC/BD-220SE | BC/BD-220SE | |
Service Tem.- Max | 140° F | 60°C | DHG-9055A | DHG-9055A |
Physical Properties | Standard | Metric | Test Method | ||
Product Code | KTN1740 | ||||
Color | Natural | ||||
Adhesive | Hot Melt Adhesive | ||||
Backing | 70 g/㎡ Kraft Paper | ||||
Total Thickness | 5.3 mils | 0.135 mm | ASTM D-3652 | GB/T7125 | |
Peel Adhesion 90° | 83 oz/in | 23 N/25mm | ASTM D-3330 | GB/T2792 | |
Holding Power | >48 h | >48 h | ASTM D-3654 | GB/T4851 | |
Tensile Strength | 39 lbs/in | 175 N/25mm | ASTM D-3759 | GB/T7753 | |
Elongation at Break | 2-4% | 2-4% | ASTM D- 3759 | GB/T7753 | |
Service Tem.- Mini | 23° F | -5°C | BC/BD-220SE | BC/BD-220SE | |
Service Tem.- Max | 140° F | 60°C | DHG-9055A | DHG-9055A |
Physical Properties | Standard | Metric | Test Method | ||
Product Code | KTN8735 | ||||
Color | Natural | ||||
Adhesive | Hot Melt Adhesive | ||||
Backing | 70 g/㎡ Kraft Paper | ||||
Total Thickness | 4.9 mils | 0.125 mm | ASTM D-3652 | GB/T7125 | |
Peel Adhesion 90° | 72 oz/in | 20 N/25mm | ASTM D-3330 | GB/T2792 | |
Holding Power | >48 h | >48 h | ASTM D-3654 | GB/T4851 | |
Tensile Strength | 39 lbs/in | 175 N/25mm | ASTM D-3759 | GB/T7753 | |
Elongation at Break | 2-4% | 2-4% | ASTM D- 3759 | GB/T7753 | |
Service Tem.- Mini | 23° F | -5°C | BC/BD-220SE | BC/BD-220SE | |
Service Tem.- Max | 140° F | 60°C | DHG-9055A | DHG-9055A |
Physical Properties | Standard | Metric | Test Method | ||
Product Code | KTN8740 | ||||
Color | Natural | ||||
Adhesive | Hot Melt Adhesive | ||||
Backing | 70 g/㎡ Kraft Paper | ||||
Total Thickness | 5.1 mils | 0.13 mm | ASTM D-3652 | GB/T7125 | |
Peel Adhesion 90° | 82.7 oz/in | 23 N/25mm | ASTM D-3330 | GB/T2792 | |
Holding Power | >48 h | >48 h | ASTM D-3654 | GB/T4851 | |
Tensile Strength | 39 lbs/in | 175 N/25mm | ASTM D-3759 | GB/T7753 | |
Elongation at Break | 2-4% | 2-4% | ASTM D- 3759 | GB/T7753 | |
Service Tem.- Mini | 23° F | -5°C | BC/BD-220SE | BC/BD-220SE | |
Service Tem.- Max | 140° F | 60°C | DHG-9055A | DHG-9055A |
Product Advantages
Application
Used for two strip sealing cartons top and bottom. Works well on recycled cartons, and non-unitized loads.
Strong adhesive packaging.
Used for extremely secure box sealing.
Works well on recycled cartons,and non-palletized loads.
It is mainly used to replace pressure-sensitive adhesive tape etc.
The tape bonds to corrugated boxes to keep the contents inside safe during transit and shows evidence of any tampering or opening.
Packaging & Shipping
Delivery: | 15-25 days after receiving 30% deposit. |
Packing Details: | 1. 6rolls/8Rolls/10rolls/12rolls / carton |
2. 144cartons/ Pallet, 126carton/Pallet | |
According to customer's requests |
Storage and Usage Conditions
It’s recommended to store in clean and dry place. Damaged packaging shall be prevented. Not stored with volatile solvent. The temperature of storage shall be 4℃ to 26℃ and the humidity shall be between 40% and 50%. Rotate inventory recommended.
