Product Details:
|
| Product Code: | B120F | Product Name: | PVC Electrical Tpae, Vinyl Tape, Insulation Tape |
|---|---|---|---|
| Thickness: | 0.12mm, 0.11mm - 0.18mm | Color: | Red, Blue, Yellow, Etc. |
| Width: | 19mm - 50mm, Customized | Temperature Resistance: | 80 ℃ / 176℉ |
| Length: | 9m - 25m, Customized | Application: | Wrapping Electric Wires |
| Rated Voltage: | 600V | ||
| High Light: | Blue PVC Electrical Tape,Red PVC Electrical Tape,Yellow Flame Retardant Electrical Tape |
||

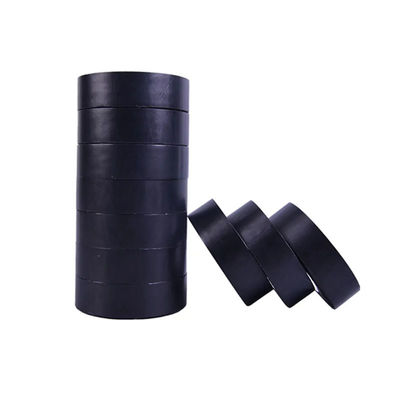

B Grade PVC Electrical Tape - Non self-extinguishing
Descriptions:
A thin B grade plasticized soft PVC film coated with an aggressive pressure sensitive rubber based adhesive with good characteristics. It is highly confirmable and unaffected by most chemicals and moisture. It has been designed for electrical insulating application.
Technical Specification
| Property | Unit | Product code | Test method | |||||
| B110F | B120F | B130F | B150F | B165F | B180F | |||
| Total Thickness |
mm | 0.11 | 0.12 | 0.13 | 0.15 | 0.165 | 0.18 | ASTM-D-1000 |
| Tensile Strength |
N/cm | 16 | 16 | 18 | 20 | 22 | 25 | |
| Elongation at break |
% | 180 | 180 | 180 | 180 | 200 | 200 | |
| 180°Peel Adhesion to steel |
N/cm | 1.3 | ||||||
| To backing | 1.3 | |||||||
| Temperature Resistance |
℃ | 80 | ||||||
| Voltage Resistance |
V | 600 | UL510 | |||||
Standard Products
Applications:
For insulative connection and sheath protection of wire and cable under the voltage of 600V and on the environment temperature between 0°C~ 80°C, frame retardant.
Practical PVC insulating tape. The normal working temperature is 80°C, and when the temperature low to 0°C, it can working normally.
Primary electrical insulation
Protection for low and medium voltage cable splices
Colour coding
Industrial applications
Used for electrical cables wrapping in automotive application
Hand application
Features
Waterproof
Insulation, Flame retardant
High elongation
Widely application
Both outdoor, indoor, damp places not easy ooze water
Packaging & Shipping
| Delivery: | 30-35 days after receiving 30% deposit. |
| Packing Details: | 1. Each roll packing with a label |
| 2. 10 rolls shrink | |
| 3. 100rolls/carton, 120rolls/carton, 150rolls/carton, 200rolls/carton | |
| According to customer's requests |
Recommendations
Rolls should be stored flat on their cut edges in the original packaging. The products must be protected from dust, heat, moisture, direct sunlight and solvent fumes. The storage temperature should be between +10℃ and +25℃ x 65%R.H. Use within 12months of receipt. The tape should be applied with sufficient tension to ensure an optimum bonding and a minimum of two layers with a half overlap. The final layer should be wrapped with a lower tension to prevent flagging effects. Surfaces should be clean, dry and free of dust, grease, oil or other contaminants.
