Product Details:
|
| Material: | Aluminum Foil + Scrim + Kraft + Fiberglass | Product Name: | Aluminum Foil Scrim Kraft Tape, 3-Way FSK Tape |
|---|---|---|---|
| Adhesive: | Synthetic Rubber-Resin Adhesive | Product Code: | AF7105A |
| Backing Thickness: | 120mic | Total Thickness: | 170mic |
| Service Temperature: | -20 ~ + 80 Degree Centigrade | MOQ: | 2000Rolls |
| Feature: | Waterproof, Thermal Insulation | Application: | HVAC, Duct Board Joints And Seams |
| High Light: | Scrim Kraft Aluminum Foil,Reinforced Aluminum Foil Tape,FSK HVAC Aluminum Tape |
||

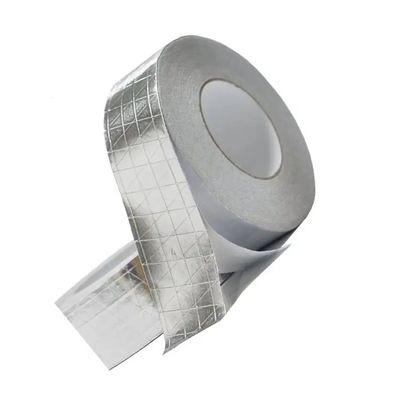

3-Way Reinforced Aluminum Foil Scrim Kraft Tape - AF7105A
Description:
3-way Foil-Scrim-Kraft facing laminated fiberglass blanket backing, combined with a transparent high performance synthetic rubber-resin adhesive, protected by an easy-release silicone release paper.
Standard Products:
| Product code | Aluminum Foil Scrim Kraft Tape - AF7105A |
| Material | Aluminium Foil Scrim Kraft facing laminated fiberglass |
| Gule | High Performance Synthetic Rubber-Resin Adhesive |
| Cut Roll | 48 / 50mm (2") / 60 / 63mm (2.5") / 72 / 75mm (3") / 96mm / 100mm (4") |
| Log Roll | 1200mm x 45M / 50M |
| Jumbo Roll | 1200mm x 500M / 750M |
| Sample | Free, Freight on buyer |
Typical Physical Properties:
| PROPERTIES | METRIC | ENGLISH | TEST METHOD |
| Backing Thickness | 120 Micron | 4.8 Mil | PSTC-133 / ASTM D 3652 |
| Total Thickness | 170 Micron | 6.8 Mil | PSTC-133 / ASTM D 3652 |
| Adhesion to Steel | 25 N/25mm | 90 Oz./In. | PSTC-101 / ASTM D 3330 |
| Tensile Strength | 120 N/25mm | 27.3 Lb/In | PSTC-131 / ASTM D 3759 |
| Elongation | 1.0 % | 1.0 % | PSTC-131 / ASTM D 3759 |
| Service Temperature | -20 ~ +80 °C | -4 ~ +176 °F | ------------ |
| Applying Temperature | +10 ~ 40 °C | +50 ~ +105 °F | ------------ |
Features:
• 3-way Foil-Scrim-Kraft backing provides excellent reflection of both heat and light.
• High quality adhesive with super strong adhesion and holding power offers reliable and durable
Foil-Scrim-Kraft Facing joints and seams sealing in HVAC ductwork application.
• Low moisture vapor transmission rate makes AF7105A an excellent vapor barrier.
• Service Temperature range from -20 ~ +80 °C (-4 ~ +176 °F)
Applications:
For the glass wool, rock wool, mineral wool and other thermal insulation materials, heat-sealing veneer and vapor barrier layer, for cotton, cotton and cotton liner online heat sealing veneer. Specially designed for industrial equipment and pipe as well as vessel engine room's thermal Insulation.
Packaging & Shipping
Surface Preparation
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.
Product Use
It is essential that the user evaluate the KintTape product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on KintTape products between +10℃ ~ 40℃(+50°F ~ +105°F).
